Fabrication drawings

Dorseth Pipe Detailing makes pipe fabrication drawings and pipe install drawings for mechanical contractors and fabricators, from the engineer’s design: the 3D model, P&IDs, piping specs, or a point cloud of what is already built.

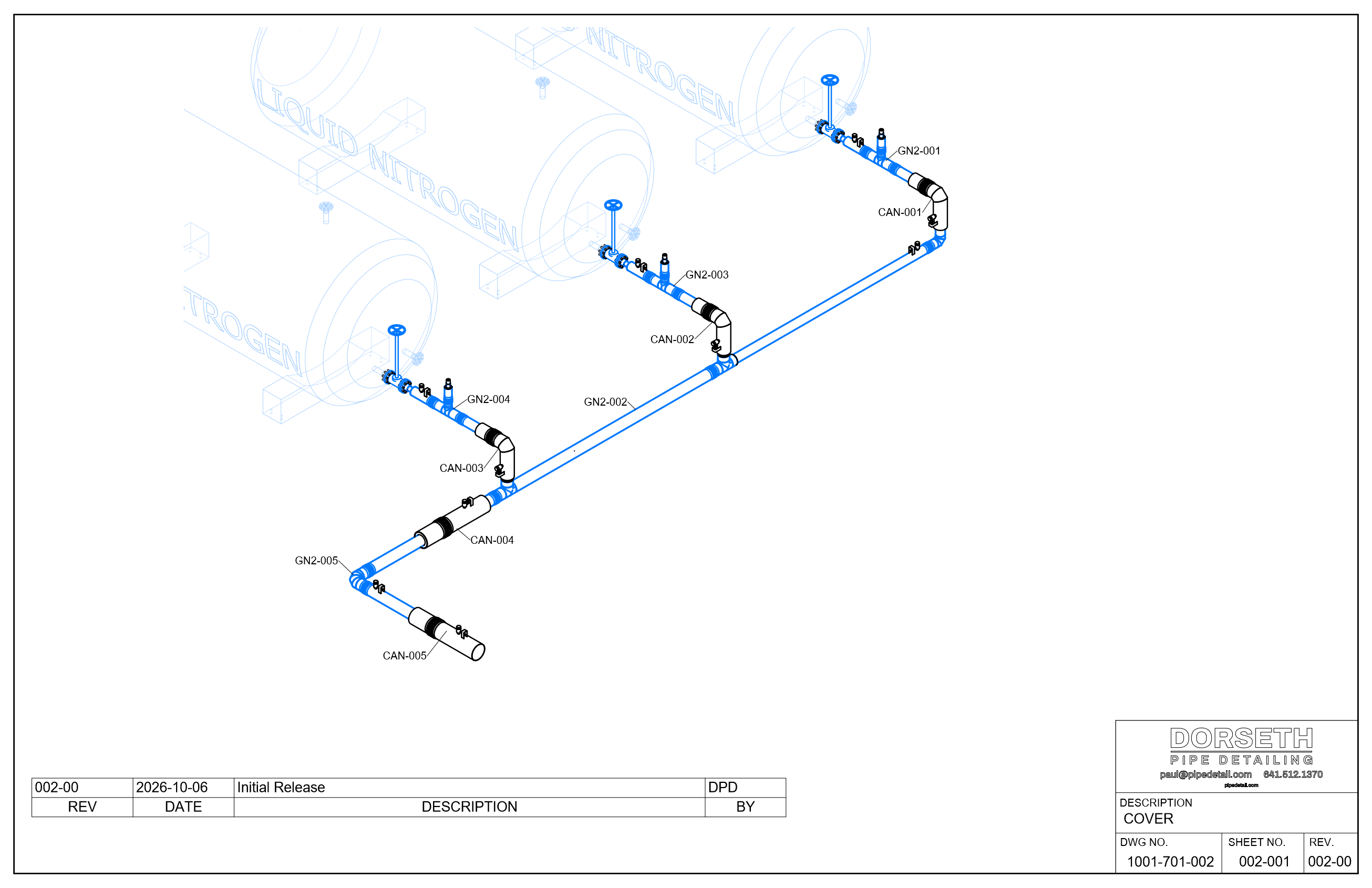

  • Vacuum-jacketed pipe drawing: hidden-line 3D of three liquid nitrogen tanks tied into a vacuum-jacketed header, with the closure cans and bellows shown and every spool tagged
    Vacuum-jacketed pipingThe whole system in one 3D: inner line and jacket, closure cans and bellows, every spool tagged.

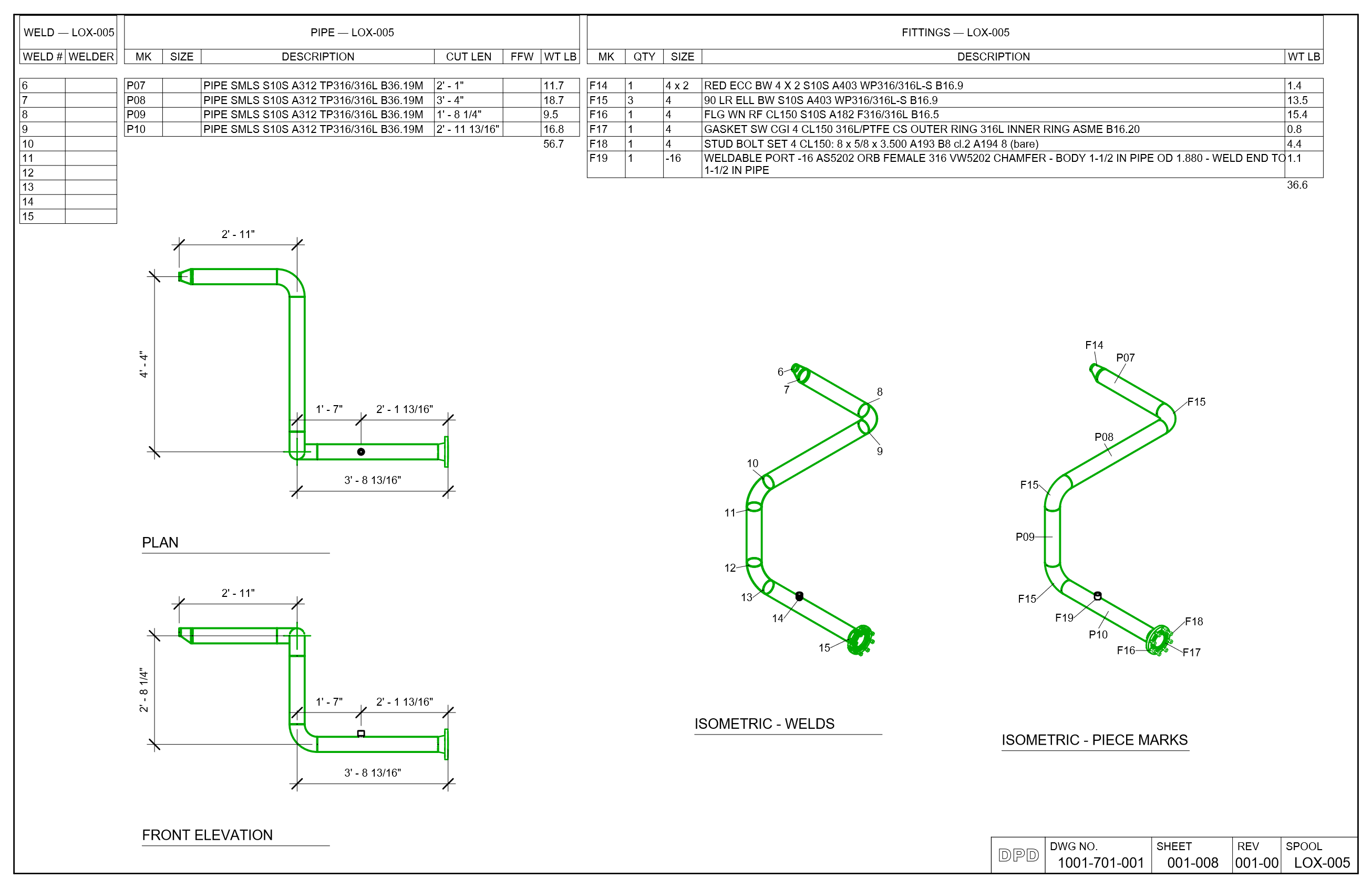

  • Pipe fabrication drawing: spool sheet with dimensioned plan and elevation, fabrication isometrics with weld numbers and piece marks, weld list, cut list and bill of material
    Spool sheetEvery dimension, weld number and piece mark, with a cut list and bill of material that match.

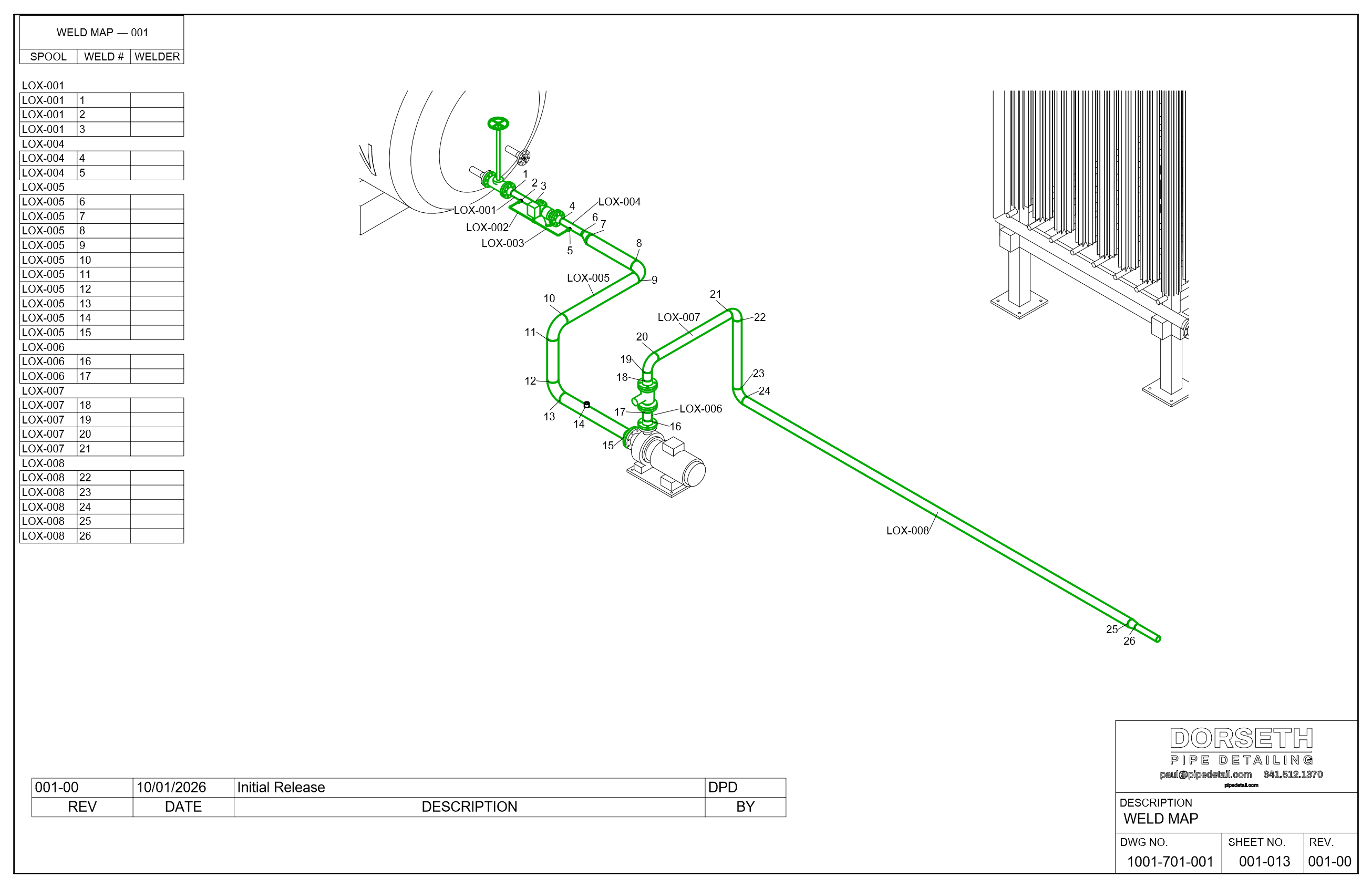

  • Pipe weld map drawing: one 3D of the whole run with every spool tagged and every weld numbered, beside the weld list by spool
    Weld mapEvery weld on the job numbered on one 3D, listed by spool.
  • support detail to come
    Support sheetFabricated steel, hangers and strut, with the cut list, hardware and coatings.
  • install layout to come
    Install drawingPlans and sections dimensioned from field benchmarks.

Field experience

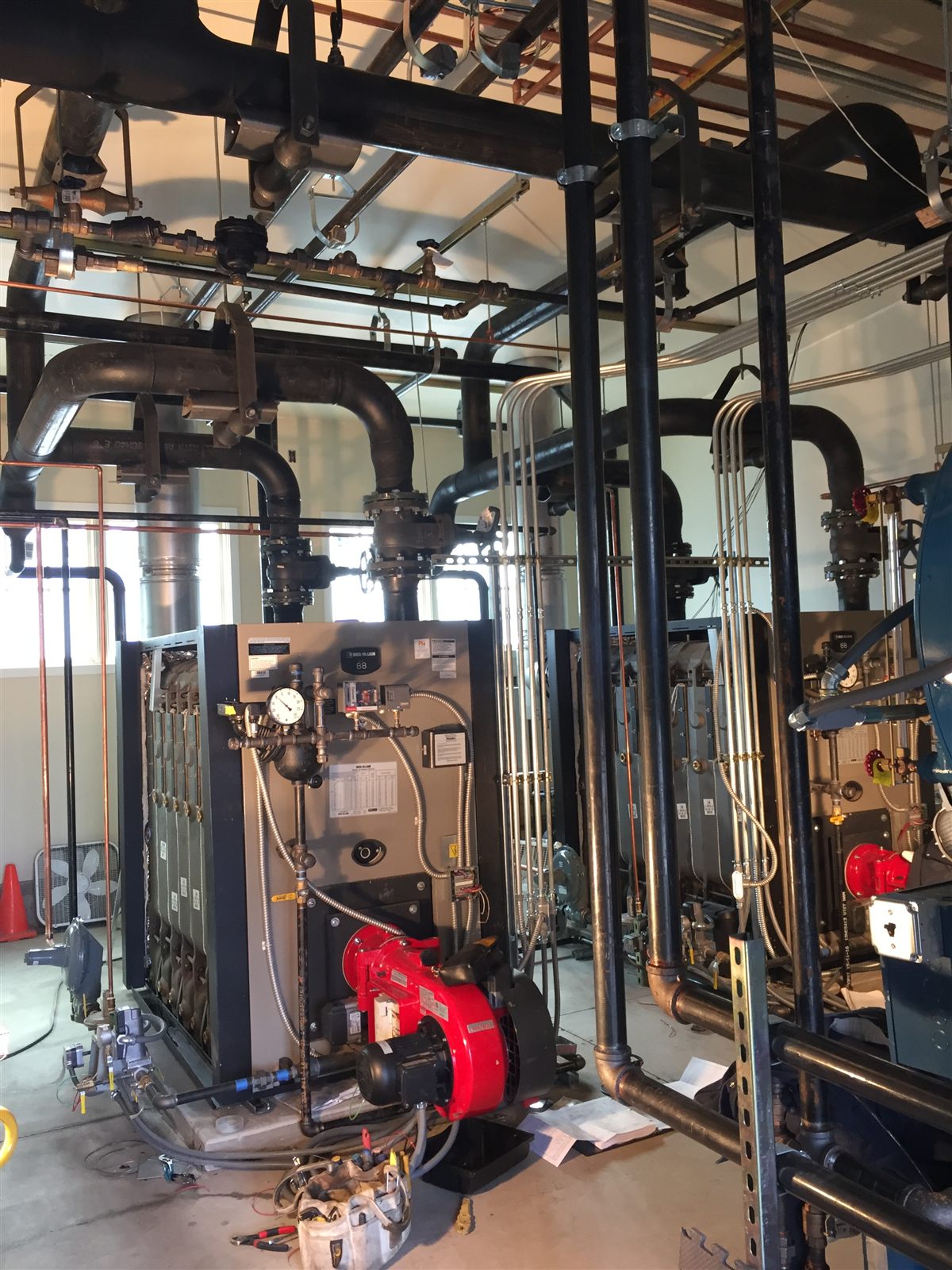

  • Mechanical room
    Mechanical room

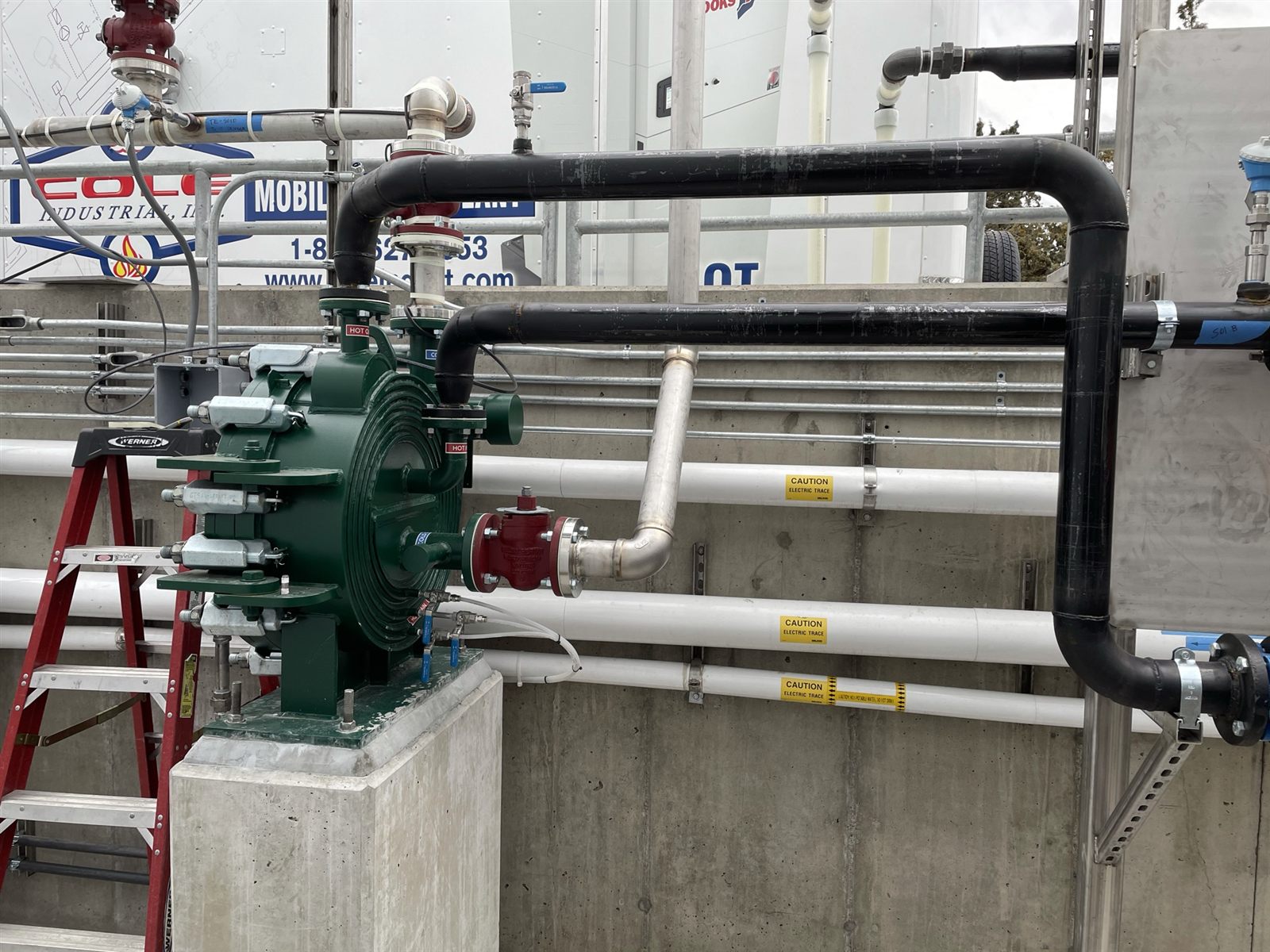

  • Wastewater treatment
    Wastewater treatment

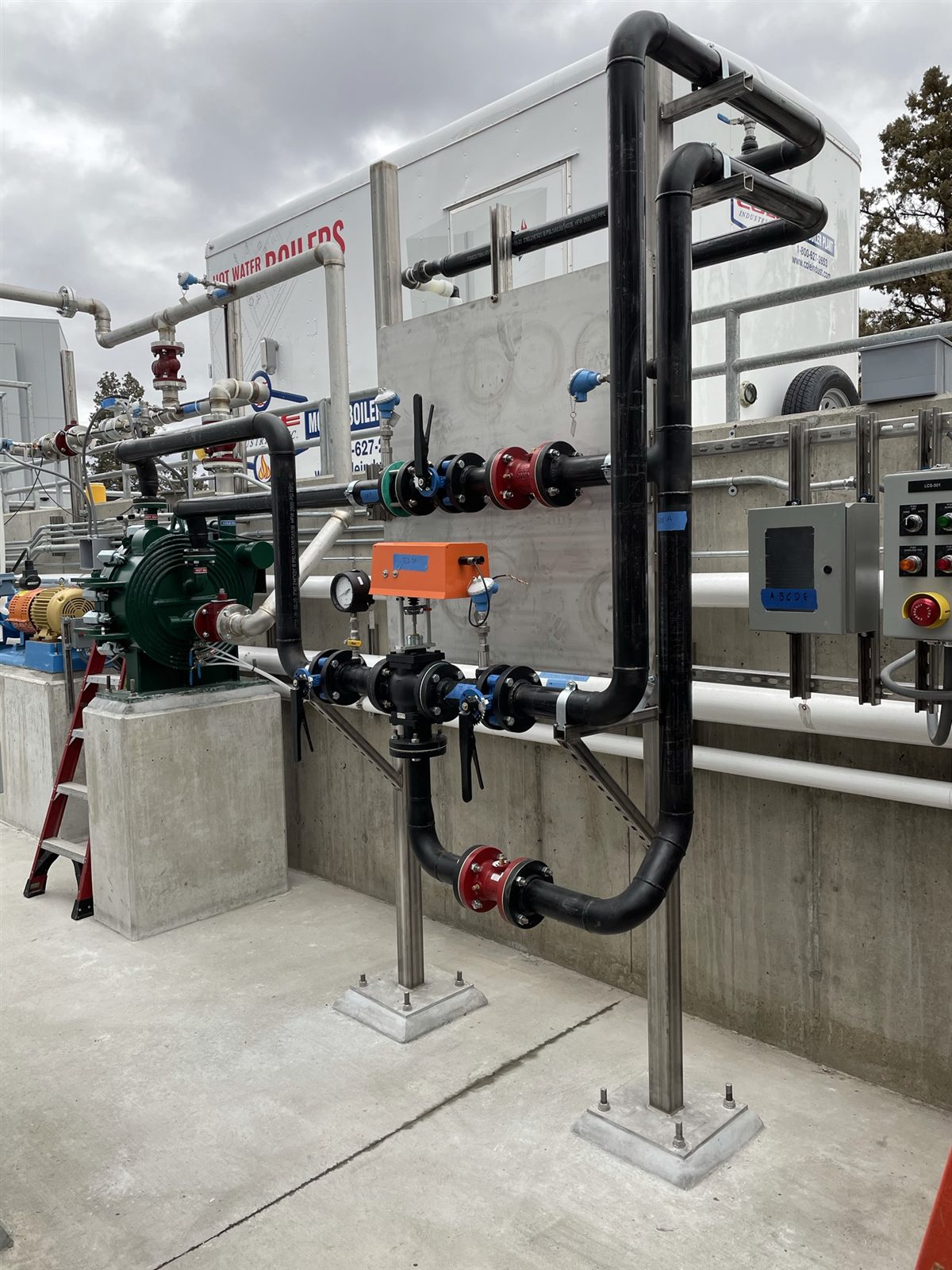

  • Mobile plants
    Mobile plants

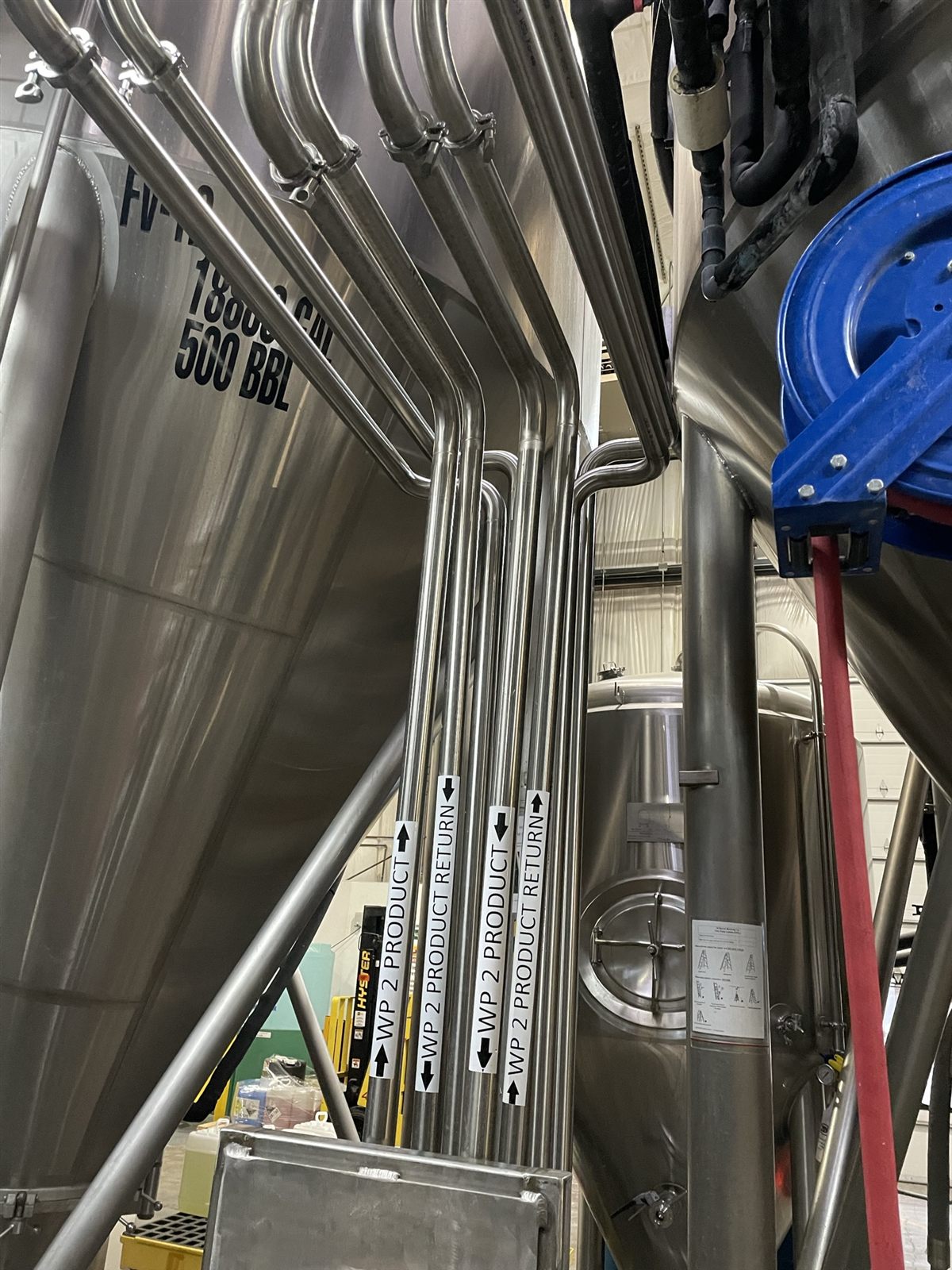

  • Food and beverage
    Food and beverage

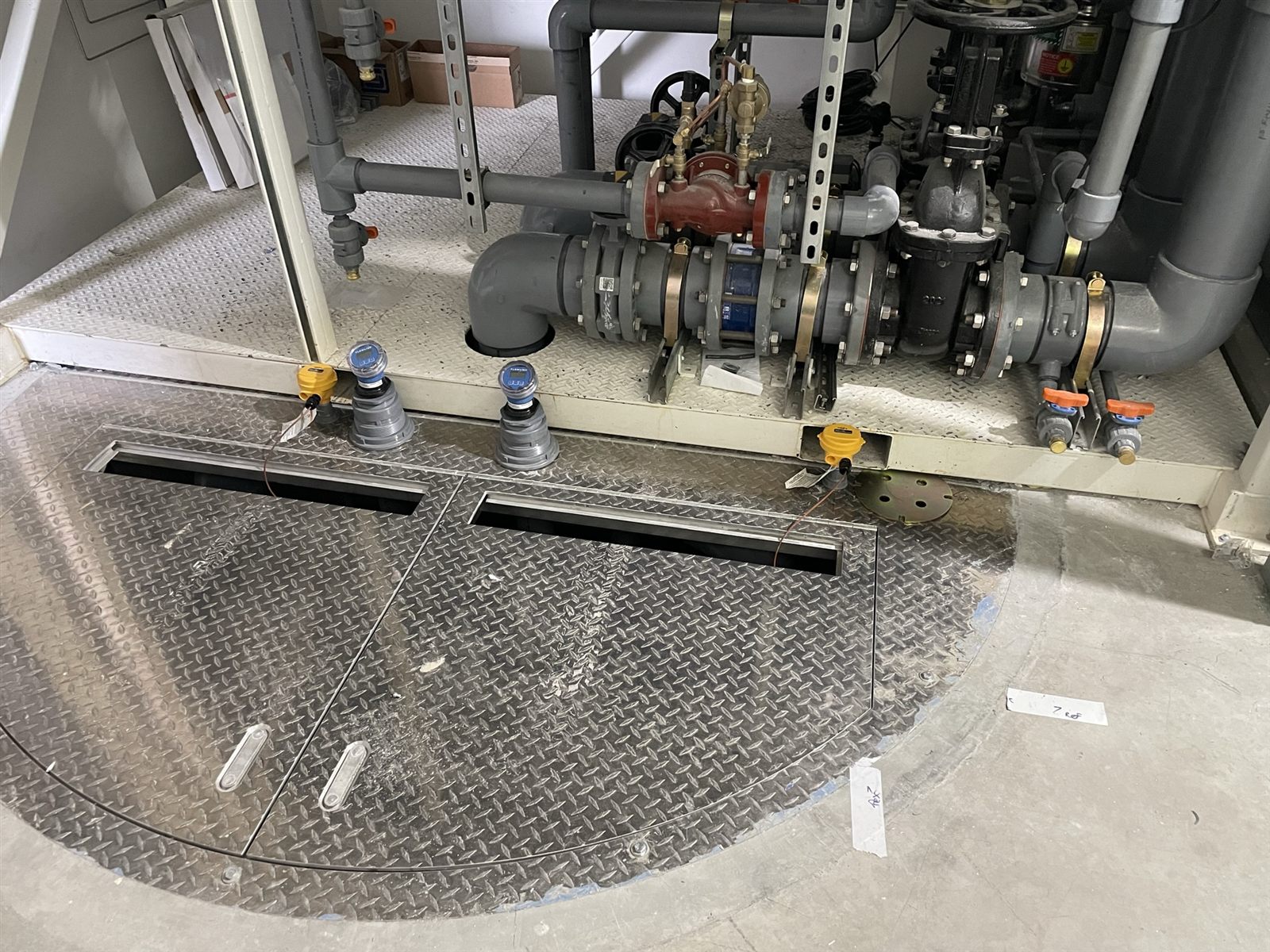

  • Mechanical skids
    Mechanical skids

Capability

  • Dimensioned to buildEvery length on the sheet. Field fits called out with the allowance.
  • Weld trackingEvery weld numbered by spool, on the sheet and on one weld map.
  • Pipe supportsFabricated supports, hangers and strut drawn for the shop, with steel cut lists, hardware and coatings.
  • Stainless, carbon steel and tubeButt weld, socket weld, threaded, flanged, grooved. Orbital and compression tube.
  • Vacuum-jacketed cryogenic pipeInner line and jacket detailed together: segmented elbows, bellows, spacers, vacuum ports.
  • Install drawingsDimensioned from field benchmarks.
  • Catalog-true partsFittings, flanges, valves and supports modeled to ASME B16 and MSS SP-58 dimensions and manufacturer catalogs.
  • LOD 400 modelsModels built to fabrication level, LOD 400. The sheets come straight off the model. What LOD 400 means
  • Any model formatBuilt from the engineer’s model, whatever it was made in. A STEP file is enough.

Industries

Dorseth Pipe Detailing details pipe for industrial food and beverage, chemical plants, pulp and paper, pharmaceutical, semiconductor, data centers, water treatment and aerospace launch infrastructure, with field experience behind the drawings. Different owners, different specs, different inspection regimes. The same need on every one: drawings the shop can build from and the field can install from.

  • Launch sitesCryogenic, propellant and pressurant systems, vacuum-jacketed lines, launch pad and processing facility piping.
  • Process plantsChemical and gas plants, semiconductor supply, pharmaceutical heat-transfer and solvent systems, food processing and sanitary tube, breweries.
  • MechanicalHydronic heating and chilled water, steam and condensate, plumbing. Data centers, commercial, institutional and municipal work.
  • IndustrialWater treatment, ammonia refrigeration, boiler tube and pressure vessel repair, paper mills and sawmills.

How it works

  • You send the design: the 3D model, P&IDs, piping specs, isometrics, a point cloud where the pipe meets existing work.
  • You get a drawing set ready to issue to the shop and the field, with cut lists and bills of material. Revisions are tracked and transmitted as the design changes.
  • Florida LLC. Drafting services only: no design, no stamp. W-9 on request.
  • Based in Titusville. On site anywhere in Brevard, Volusia, Orange, Seminole and Indian River counties; drawings anywhere.
